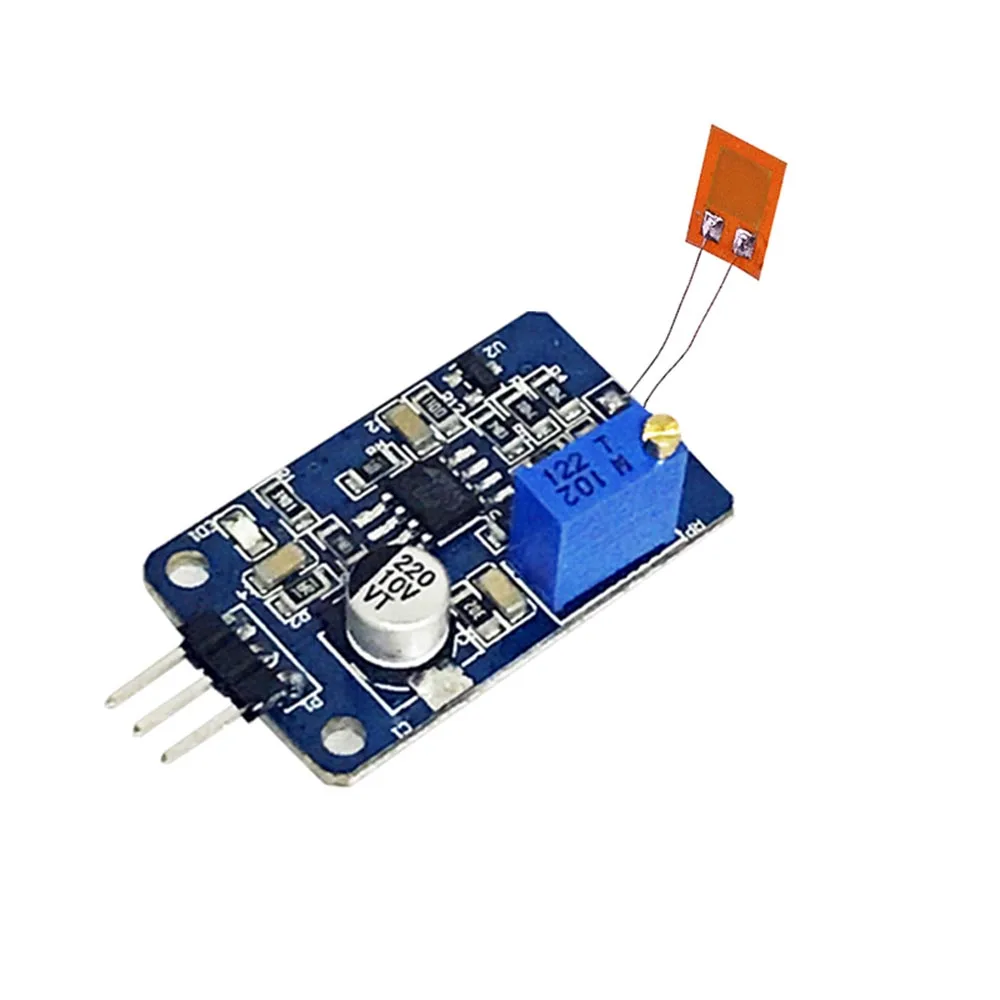

Taidacent BF350-3AA/1.5AA Electrical Resistance Strain Gauge Measurement Strain Gauge Bend Sensor Module Y3 Weighing Amplification Module: Industrial & Scientific. Taidacent BF350-3AA/1.5AA Electrical Resistance Strain Gauge Measurement Strain Gauge Bend Sensor Module Y3 Weighing Amplification Module: Industrial & Scientific. The working principle of the resistance strain gauge is based on the strain effect 。 Put the strain gauge on the object to be bent along with the strain of the object, so that the metal foil inside will bend with the strain. 。 This is a bend sensor. 。 can attach the strain gauge to the object, detect the bend, and then our module bends and converts the voltage. 。 Strain gauge Bend Sensor module Y3 Weighing Amplification module Finished product 。 1.Introduction to components 。 Model: BF350-3AA / 1.5AA 。 Sensitivity coefficient: 2.0 。 Strain: 2% 。 Grid wire: length x width 2x3.5mm 。 Base size: length x width 5x4.5mm 。 Base material: Modified phenolic substrate. 。 Grid wire material: Constantan 。 Resistance: 350 ohms 。 Fatigue life:> 10000000 cycles 。 Flux: ordinary solder rosin 。   The working principle of the resistance strain gauge is based on the strain effect, that is, when a conductor or a semiconductor material undergoes mechanical deformation under the action of an external force, its resistance value changes accordingly. This phenomenon is called "strain effect". 。   Put the strain gauge on the object to be bent along with the strain of the object, so that the metal foil inside will bend with the strain. Many metals change their electrical resistance when they are mechanically bent. 。  2. Product introduction 。 Voltage: 5V 。 Diode reverse protection ~ (Prevent power from being reversed) 。 On board with blue LED power indicator 。 Analog output 。 Bending angle 0-30 degrees 。 The greater the curvature, the higher the output voltage. 。 With zero potentiometer 。 You can use the potentiometer to adjust the output starting voltage 。 Output analog voltage 0-3.5V 。 Board size: 32 X 17 mm 。 Pin definitions are printed on the back of the board (Bend the strain gauge to change the output voltage) 。 Q: How to use this, principle? 。 This is a bend sensor. 。 The principle of scale: For the conversion of the bending degree, attach the strain gauge to the carrier, such as: iron, aluminum, plastic sheet, and then bend the carrier. When the strain gauge detects that the bending output voltage will change. You can attach the strain gauge to the object, detect the bend, and then our module bends and converts the voltage. 。 。 。 。
